Kinematic by Graphical Means Review Quiz
Choose the best answer. It does not matter how many questions you miss. What matters is that you learn from any mistakes.
Show all questions
<=
=>

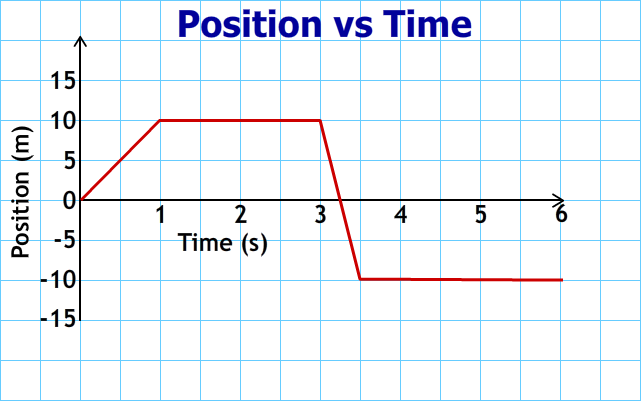

What is the displacement from 1 to 4 seconds for the following graph?
?
-4 m
?
25 m
?
10 m
?
-10 m
?
20 m
?
-20 m

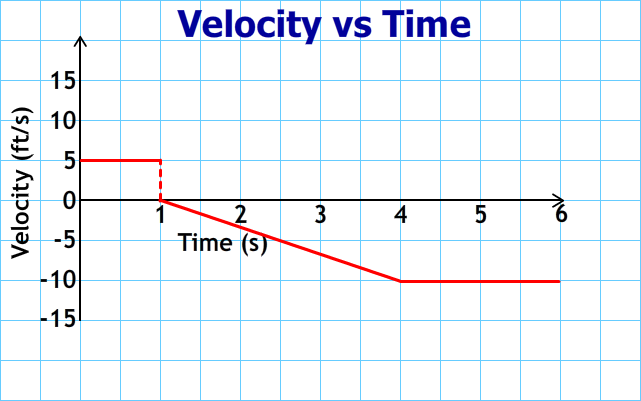

Calculate the displacement from 1 to 4 seconds on the graph below.
?
-15m
?
15m
?
-65 m

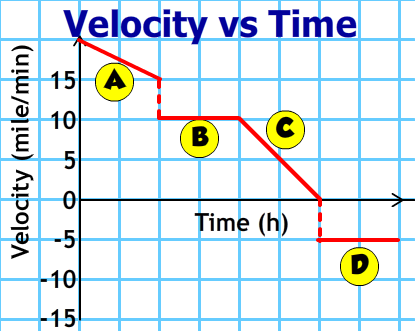

Which labeled section of the graph below has a constant velocity and a positive displacement?
?
Segment A
?
Segment B
?
Segment C
?
Segment D

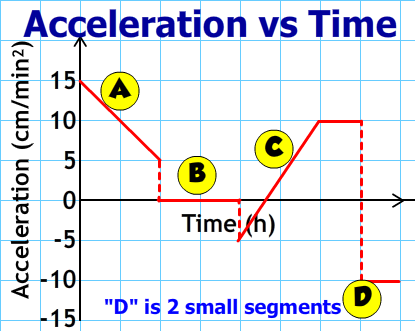

Which labeled section of the graph below has a negative velocity and an acceleration of zero?
?
Section A
?
Section B
?
Section C
?
Section D
?
None of these sections

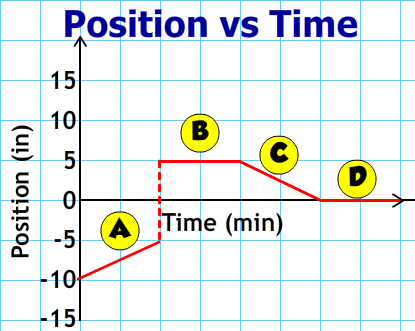

Which labeled section of the graph below has a positive acceleration?
?
Section A
?
Section B
?
Section C
?
Section D
?
None of these sections.

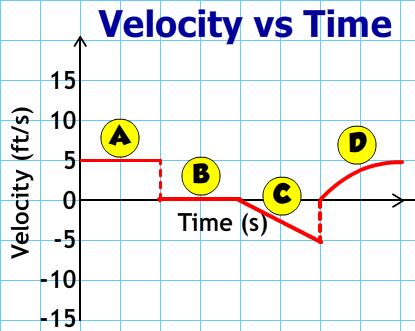

Which labeled section of the graph below has a positive acceleration?
?
Section A
?
Section B
?
Section C
?
Section D
?
None of these sections.

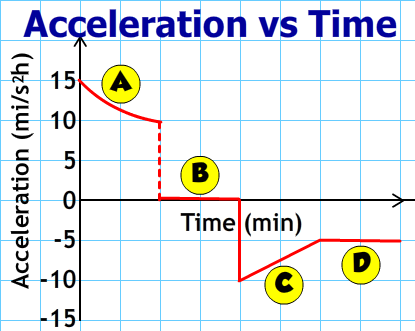

Which labeled section of the graph below has a positive velocity and a constant acceleration?
?
Section A
?
Section B
?
Section C
?
Section D
?
None of the above sections

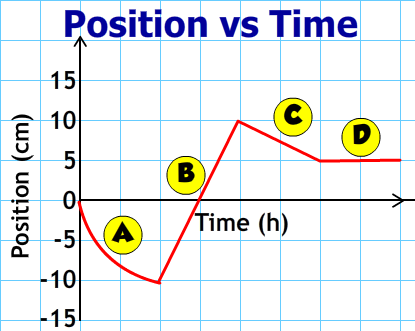

Which labeled section of the graph below has a negative CHANGE in velocity and a constant acceleration?
?
Section A
?
Section B
?
Section C
?
Section D
?
None of the sections.

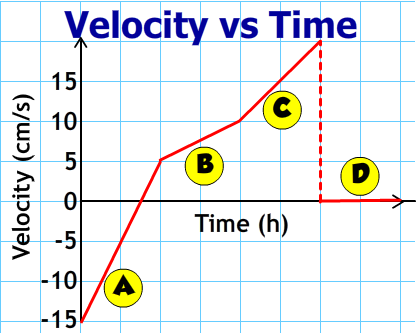

Which labeled section of the graph below has a negative displacement and a constant acceleration?
?
Section A
?
Section
?
Section C
?
Section D
?
None of the above

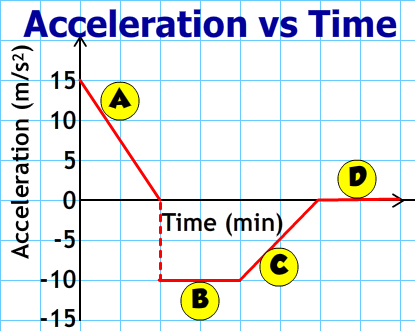

Which labeled section of the graph below has the greatest postive acceleration?
?
Section A
?
Section B
?
Section C
?
Section D
Which section has a displacement of zero?
?
Section A
?
Section B
?
Section C
?
Section D
Which section has a change in velocity of zero and positive and negative acceleration?
?
Section A
?
Section B
?
Section C
?
Section D
?
None of the above

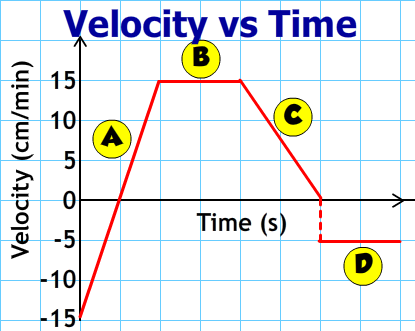

What are the units of the slope from the graph below?
?
?
?
?

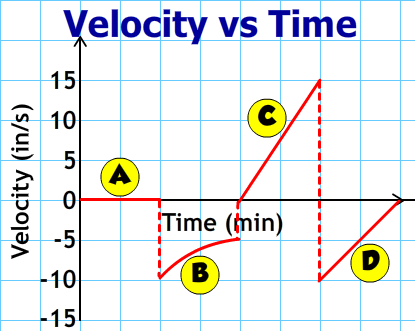

What are the units of the area found from this graph?
?
?
?
?

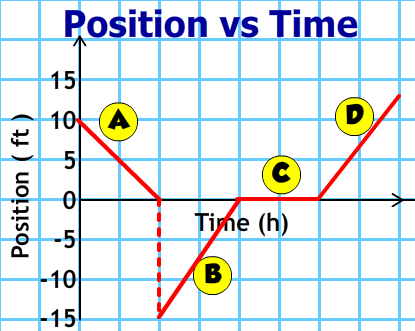

Which segment shows an object moving the fastest? (Direction does not matter.)
?
Section A
?
Section B
?
Section C
?
Section D

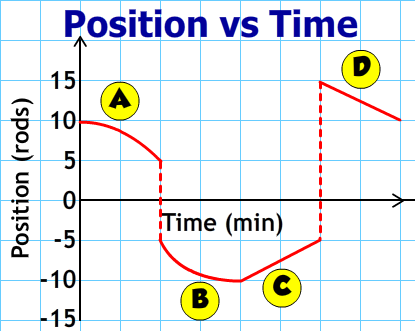

Which segment shows an object moving the fastest? (Direction does not matter.)
?
Section A
?
Section B
?
Section C
?
Section D
