Capacitance
Previous Page
Page 3 next page
This text is meant to accompany class discussions. It is not everything there is to know about the basics of torque and the two conditions of equilibrium. It is meant as a prep for class. More detailed notes and examples are given in the class notes, presentations, and demonstrations (click here.)

Questions Click for the questions that go with this reading

Schematics and Identifying Capacitors in Series or Parallel

This video can be found on YouTube at http://youtu.be/hfuUasMeN5w



Example 1
  • Question
  • Solution
  • Video Solution

Identify which capacitors are in series or parallel.

Image of the circuit



This video solution can be foudn on YouTube at http://youtu.be/4DQg4N4SNwc


Example 2
  • Question
  • Solution
  • Video Solution

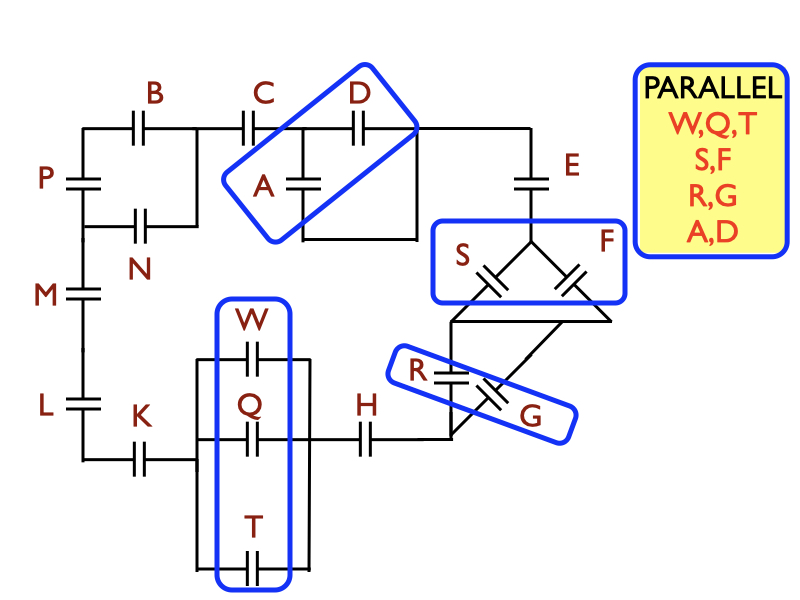

Identify the capacitors that are in series and parallel.

This video solution can be found on YouTube at http://youtu.be/XJpXVCRqA14

Note:
This example follows our charge model that says negative or postive charges can flow. In reality one charge type flows more easily than the other. So this charge leaves one plates and collects on the opposite plate.
