Kinematics: By Graphical Means -Displacement on an x vs t graph

Page 3B

This text is meant to accompany class discussions. It is not everything there is to know about dimensional analysis. It is meant as a prep for class.

Click for the questions that go with this reading

Finding displacement on a position vs time graph

Displacement is the change in position. Change is represented with Greek letter capital delta, Δ. the letter "x" represents position and displacement is represented as " Δx." In science terms the change is always calculated as final value - initial value. Since all of our kinematics graphs deal with funcition of time, f(t). This means that change is always the measurement that occures later in time - the measurement that occures earlier in time.

This video can be found on YouTube at http://youtu.be/It2pg1WXww0

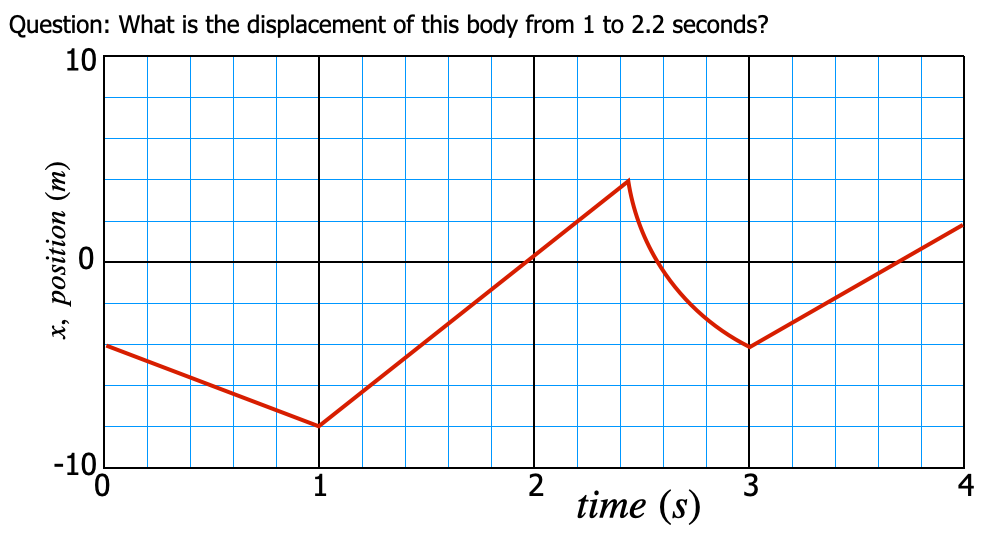

Example 2

Question
Solution
Video Solution

This video can be found on YouTube at https://youtu.be/v_bPafMLCkA

by Tony Wayne ...(If you are a teacher, please feel free to use these resources in your teaching.)
