This text is meant to accompany class discussions. It is not everything there is to know about energy. It is meant as a  prep for class. More detailed notes and examples are given in the class notes, presentations, and demonstrations (click here.)
Click here for questions that go along with this section on Impulse and momentum.

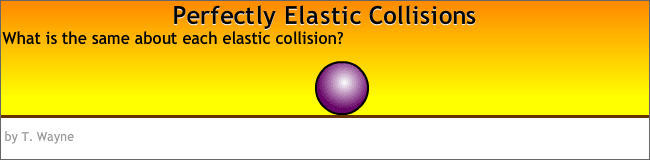

Perfectly Elastic Collisions

A collision occurs when two bodies exchange momentum. The collisions below are all elastic.

Now you know what an elastic collision looks like. To be a perfectly elastic collision two laws must be true.

  1. Law of conservation of energy
  2. Law of conservation of momentum

In other works if the sum of the kinetic energies before a collision equals the sum of the kinetic energies after the collision AND the sum of the momentums before a collision equals the sum of the momentums after the collision, then it is a PERFECTLY elastic collision.

In this course the rotational kinetic energy of any colliding balls is assumed to be so small that it is ignored.

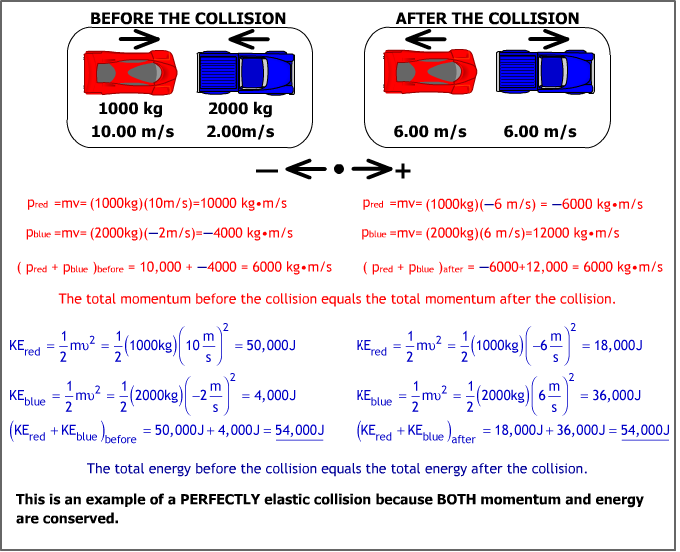

Example of a Perfectly Elastic Collision

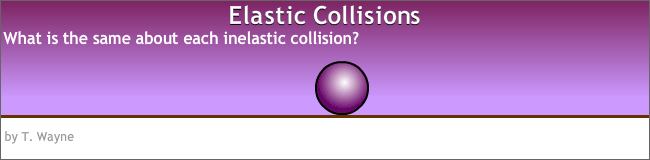

Elastic Collisions

The collisions below are completely elastic.

Elastic and "perfectly elastic" collisoipns look the same. They wil lhave the same number of bodies before and after the collision. The law of conservation of momentum can applied to both types of collisions. However, a plain elastic collision does not conserve all of the kinetic energy.


Inelastic Collisions



Inelastic collision are easy to identify. The number of bodies before the collision does not equal the number of bodies after the collisiopn. In the examples above there are 2 bodies before the collision. The bodies stick together forming smaller bodies.

Completely inelastic collisions are where the momentum is still conserved but the maximum amount of kinetic energy is lost during the collision. This lost kinetic energy is transfer into other forms of energy such as thermal energy, light, and/or sound energy.

For our problem solving purposes, any time a problem says it is an "inelastic collision." What is meant is that the collision is actually "completely inelastic."


Practice Problem 1 - Elastic Collisions

Question's Image

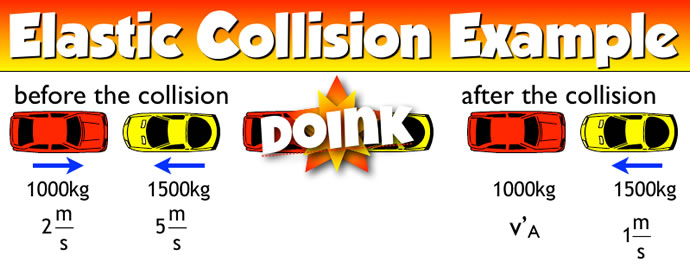

Two cars are heading towards each other. They collide in a perfectly elastic collision. (Meaning they bounce off each other after colliding.) What is the speed of the red car after the collision?

Question's Image

Two cars are heading towards each other. They collide in a perfectly elastic collision. (Meaning they bounce off each other after colliding.) What is the speed of the red car after the collision?

Solution


Practice Problem 2 - Elastic Collision

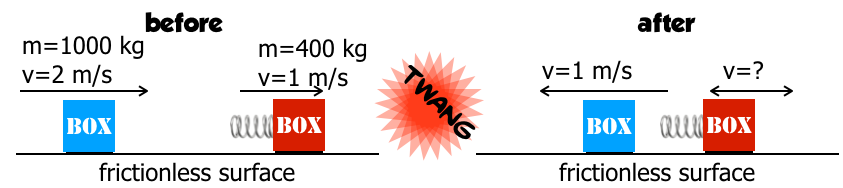

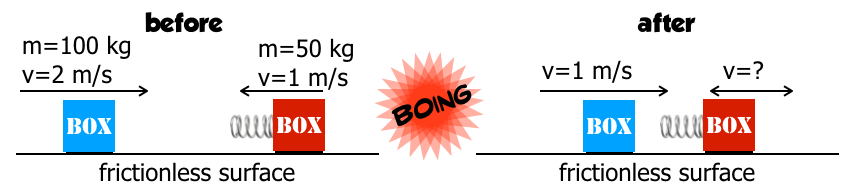

2 boxes are sliding towards each other as shown below. A spring is positioned between them so they will bounce of each other upon colliding. After the collision, what will be the speed of the red box?



2 boxes are sliding towards each other as shown below. A spring is positioned between them so they will bounce of each other upon colliding. After the collision, what will be the speed of the red box?



This video can be found on YouTube at https://youtu.be/U97Wc3_9e0A


Practice Problem 3 - Elastic Collision
2 boxes are sliding towards each other as shown below. A spring is positioned between them so they will bounce of each other upon colliding. After the collision, what will be the speed of the red box?



2 boxes are sliding towards each other as shown below. A spring is positioned between them so they will bounce of each other upon colliding. After the collision, what will be the speed of the red box?



This video can be found on YouTube at https://youtu.be/J4c5SiGNIEQ


Practice Problem 4 - PERFECTLY Elastic Collision

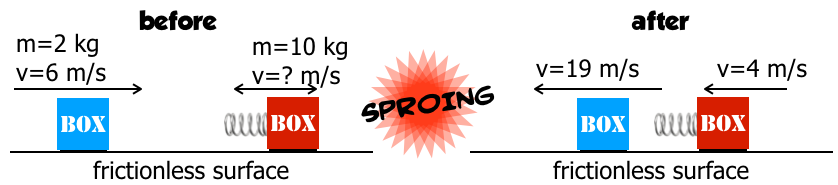

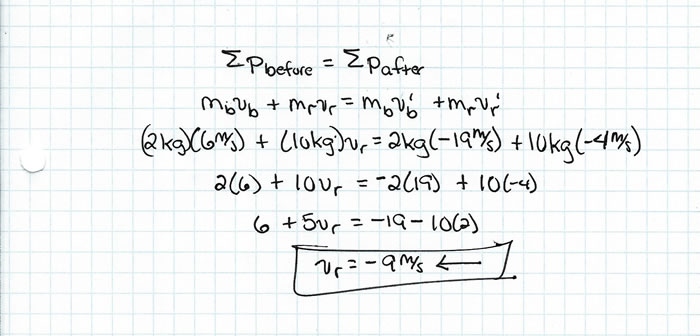

2 boxes are sliding towards each other as shown below. A spring is positioned between them so they will bounce of each other upon colliding. Before the collision, what will be the speed of the red box?



2 boxes are sliding towards each other as shown below. A spring is positioned between them so they will bounce of each other upon colliding. Before the collision, what will be the speed of the red box?



This video can be found on YouTube at https://youtu.be/6yJMs1CPDZ8


Practice Problem 5 - Inelastic Collision

Question's Image

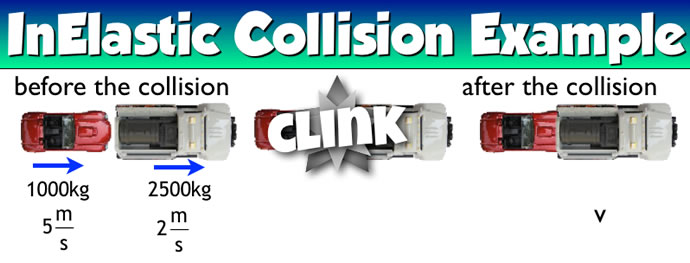

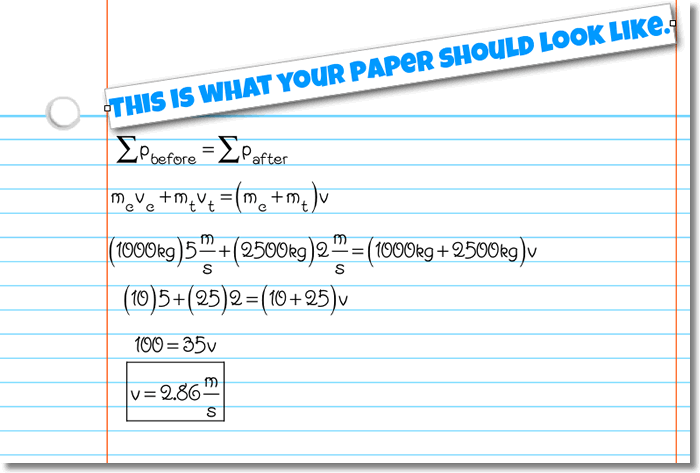

A small car is catching up to a truck. Both are heading in the same direction. The driver of the car is distracted because he is answering his cellphone. He runs into the back of the truck and the two are stuck together. What is the velocity of the pair of vehicles after the collision?

Question's Image

A small car is catching up to a truck. Both are heading in the same direction. The driver of the car is distracted because he is answering his cellphone. He runs into the back of the truck and the two are stuck together. What is the velocity of the pair of vehicles after the collision?


Practice Problem 6 - Inelastic Collision

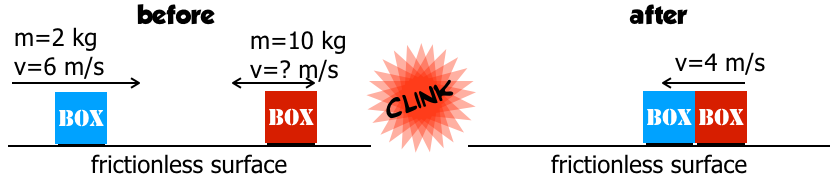

2 boxes are sliding towards each other as shown below. The two boxes will stick together upon colliding. Before the collision, what will be the speed of the red box?



2 boxes are sliding towards each other as shown below. The two boxes will stick together upon colliding. Before the collision, what will be the speed of the red box?



This solution video can be found on YouTube at https://youtu.be/xaWyQsc3hNU





Practice Problem 7

Three cars are moving as shown below. In a miricale of timing they all three collide at the same time and stick together. How fast are they traveling after sticking together?



This video can be found on YouTube at https://youtu.be/bB3syOKTeqE
